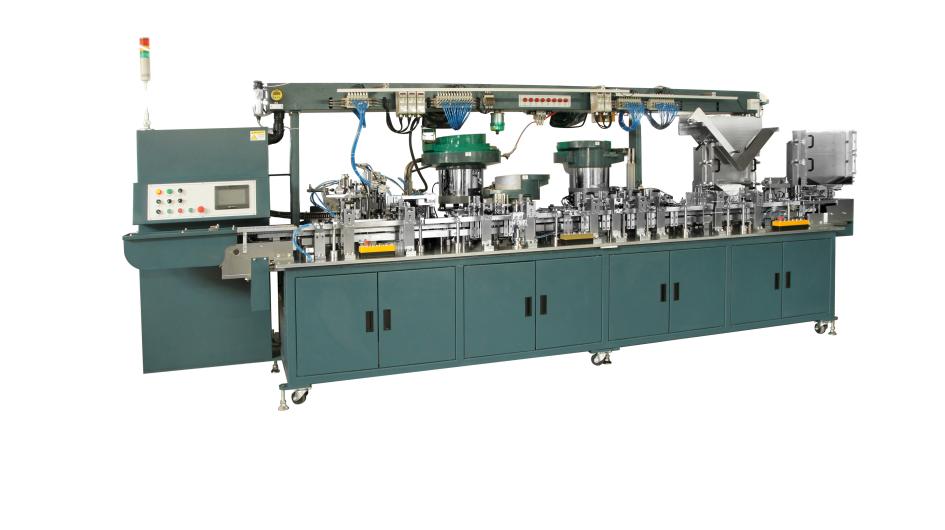

Automatic Marker Assembly Machine - 2up/4up

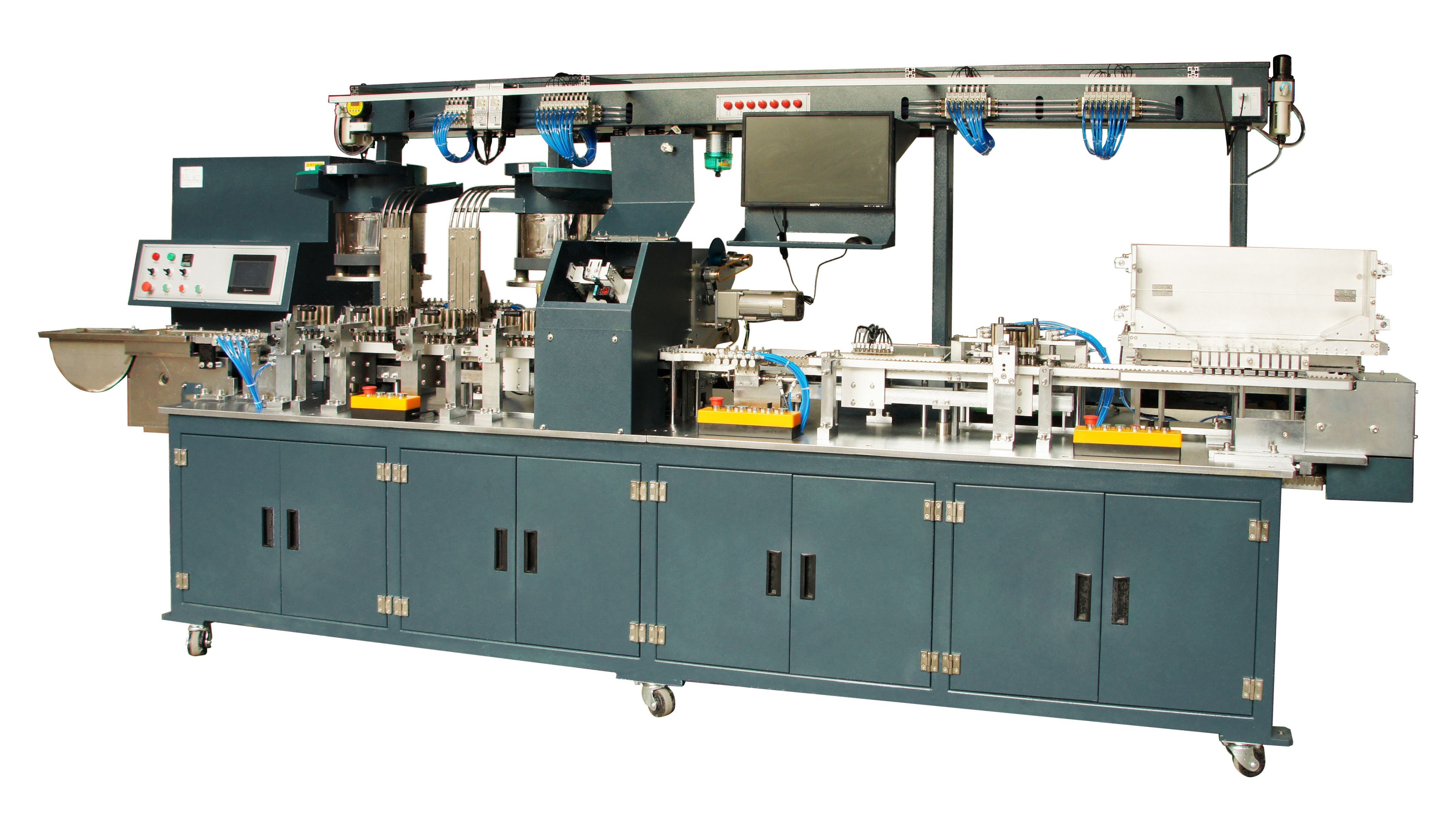

Refill writing test to sharply reduce manual labor. In a 20-up configuration (testing 20 refills at once), it integrates the following stations: refill inspection, tip-cap removal, writing test, waxing, and piece counting. The result is higher throughput, consistent test results, and significantly improved efficiency for customers.

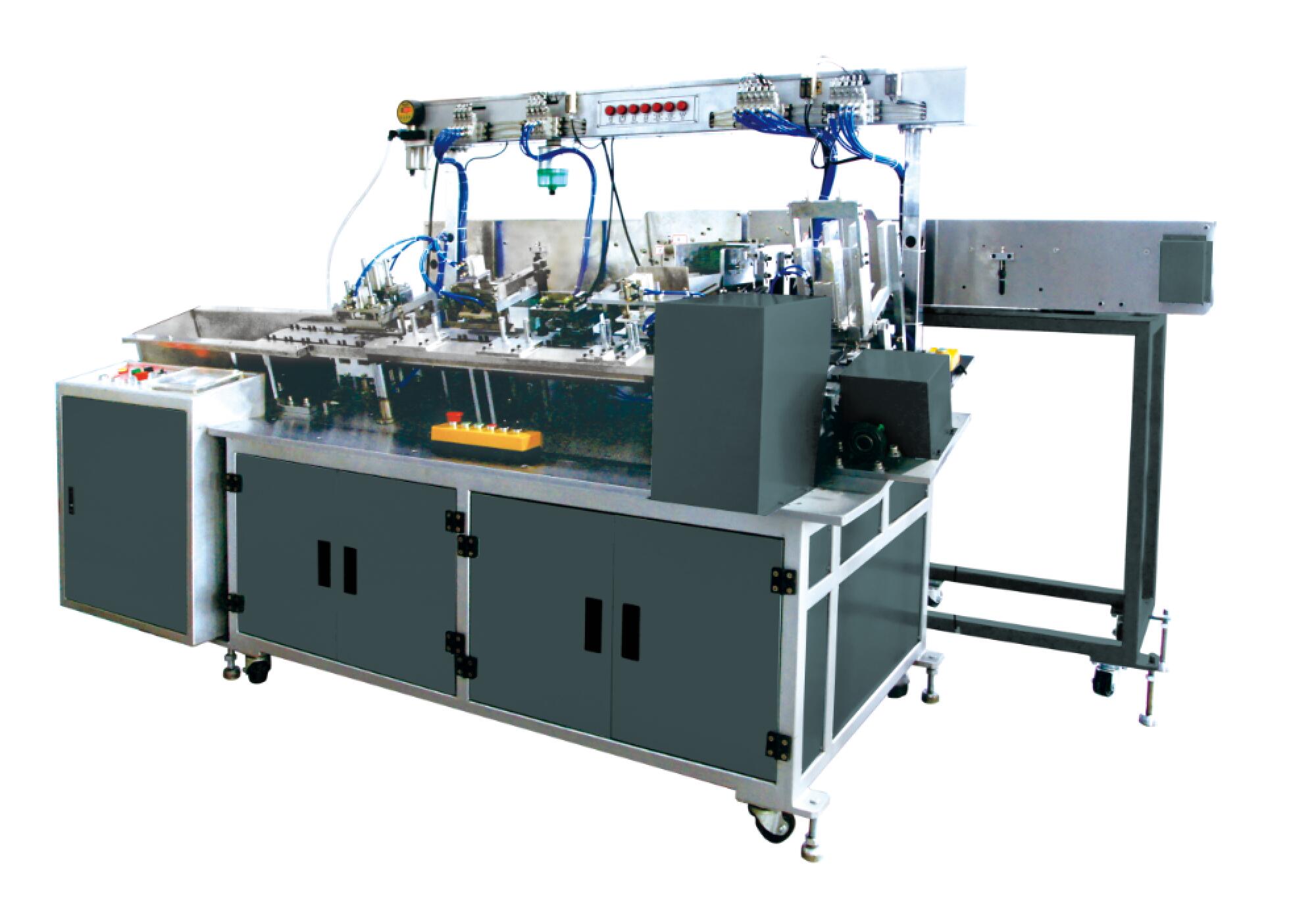

Designed to automatically insert pens into polypropylene (PP) pouches, this machine significantly reduces manual labor and boosts packing efficiency and consistency. (Optional modules such as sealing or coading can be integrated if required.)

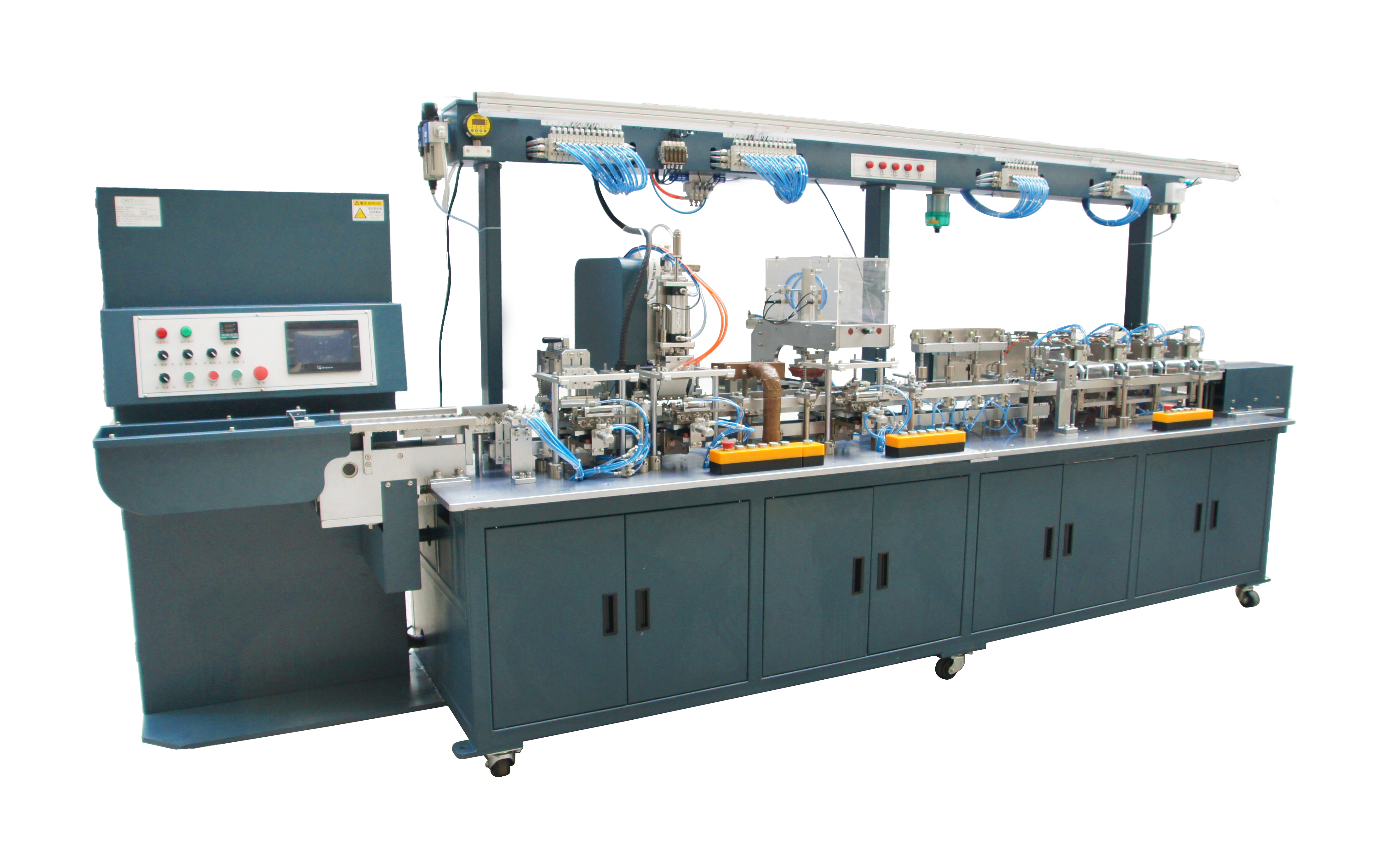

It is suitable for pad printing on the clip/cap/barrel with single or double colors, as well some products with small size.

This machine is only used for heat transfer printing of various cylindrical products, and can adapt to products with a certain taper. It has high work efficiency and good stability.

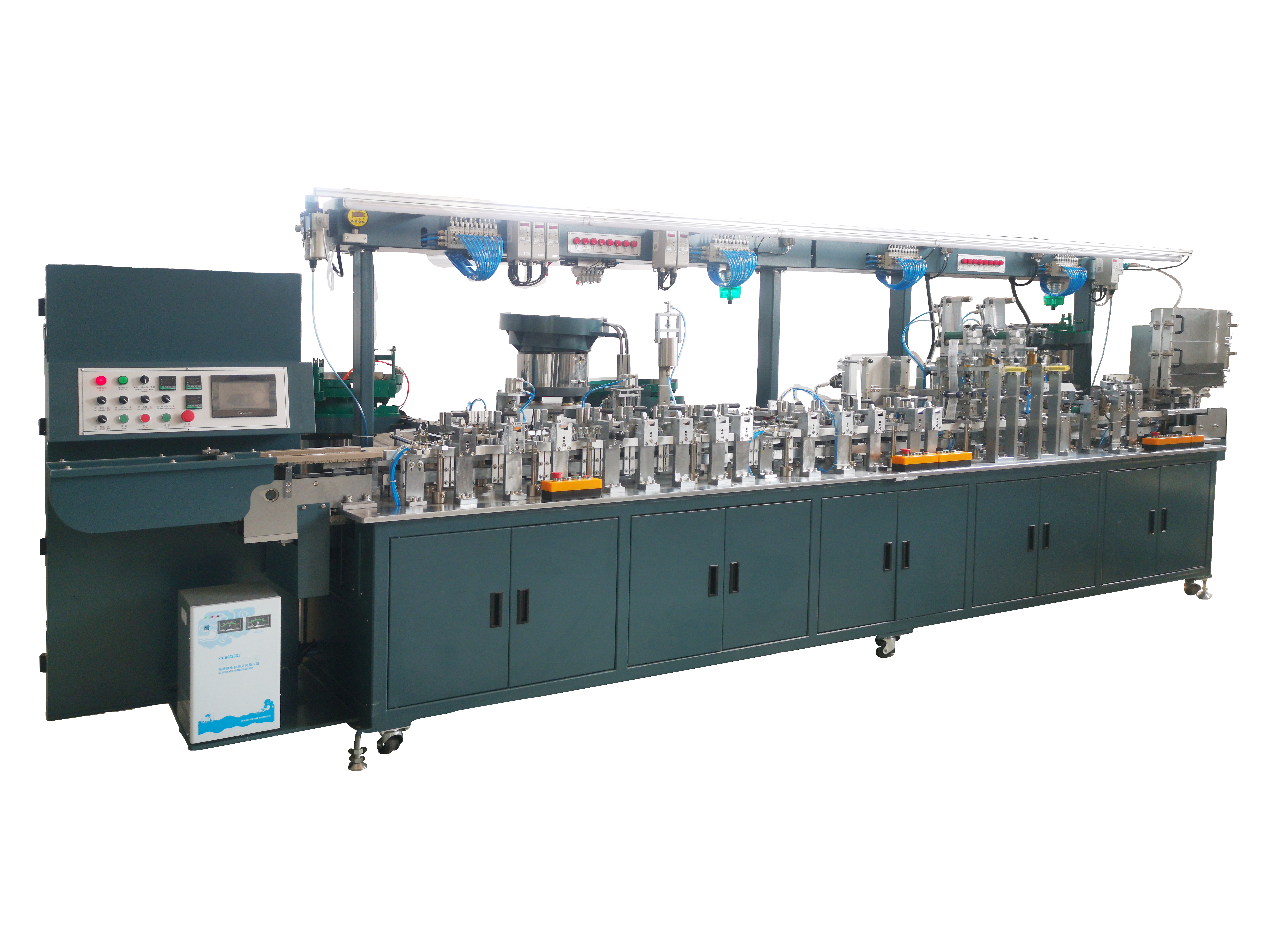

• The Assembly Machine is suitable for various ballpen and gel pen which is adopting rotatable transmitting method.
• This machine is equipped with auto loading, auto assembling, auto checking and auto assort the good products and bad products device and so on. Using PLC Programmable controller, Display operation system, Friendly interface, Having the advantage of Operation easier, High speed, high accuracy and so on.
• Equipment parameter
  Mode of production: Automatic
  Output: 100~120pcs/min
  Machine weight: 2000 kgs
  Machine dimension: 3100*1200*1500(mm)
  Power supply: 220V/50Hz
  Rated power: 2.5KW
  Suitable for productsBallpen Refill Or Gel Refill

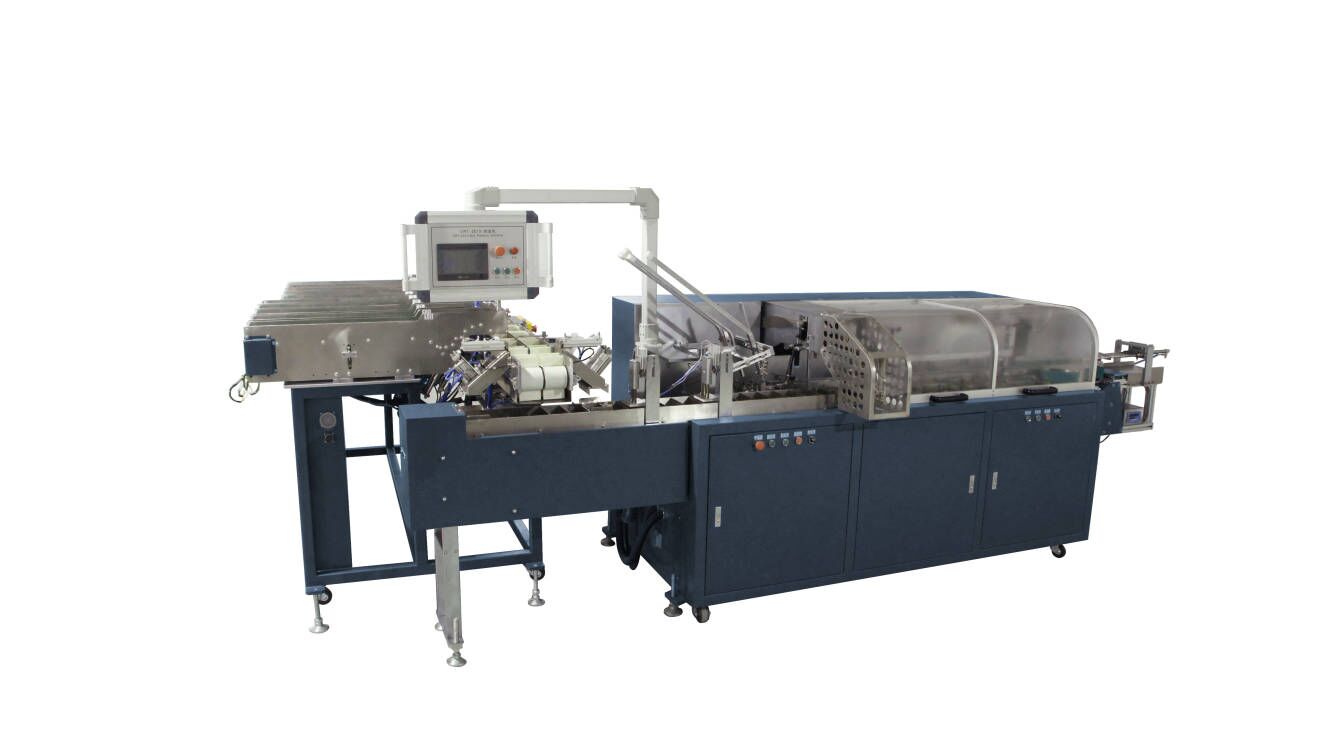

• Marker/Ballpen Box Packing Machine can achieve full automatic products
  conveying & feeding,
  flat carton feeding,
  carton opening,
  products pushing,
  carton folding,
  carton closing,
  finished carton package discharging.
  With the PLC controller, the machine is able to alarm full automatically if any fault operation and display fault prompt on the machine panel for quick troubleshooting.

The machines are designed to automate the assembly process, making it more efficient and cost-effective. Here are some key points about marker assembly machines:

• Purpose: Marker assembly machines are used to put together the various components of a the barrel, mechanism, lead, clip holder, eraser and cap.

• Efficiency: These machines are designed for high-speed production, allowing marker pens to be assembled quickly and in large quantities.

• Components: Marker assembly machines handle various components, including the pen tips, barrels, and caps, ensuring they are combined accurately.

• Automation: Automation in marker assembly machines minimizes the need for manual labor, reducing production costs and increasing consistency in the assembly process.

• Easy Operation: Many marker assembly machines are designed for easy operation, making them accessible for manufacturing facilities.
